Highest Performing Storage Lösungen für I/O-intensivste Anwendungen
AS-1114S-WN10RT
H12
AMD
1 HE
1 CPU
16 DIMMs
10 Drives
2 x 10 GbE
Red. PSU
NVMe (native)
SATA (optional)
Top Loader Storage
Höchste Packungsdichte optimiert für Software-Defined Storage Data Centers
SSG-5049P-E1CR45H
X11
Intel
4 HE
1 CPU
8 DIMMs
45 Drives
2 x 1 GbE
Red. PSU
SAS (native)
SATA (native)
Front Loader Storage
High-Performance Storage Lösungen optimiert für unternehmenskritische Anwendungen
SSG-6049P-E1CR36H
X11
Intel
4 HE
2 CPUs
16 DIMMs
36 Drives
2 x 10 GbE
Red. PSU
NVMe (optional)
SAS (native)
Software Defined Storage
Mission Critical Scale Out Storage, Erasure coding, RAID Protect, All NVMe Support
Supermicro delivers significant benefits to Software Defined Storage Solutions:
Maximum Efficiency – High capacity 1U-4U form factors. Leading the industry with up 95% efficient Platinum level power supplies
Maximum Performance and expandability – All NVMe support with hybrid expander and delivering up to 20 GB/s throughput
Mission Critical Reliability – Capable of fully redundant and fault-tolerant operation with supplies, fans and redundant serverboards with remote management
Proven Compatibility – Lab validated hardware configurations optimized for high duty cycles workloads
Gerne beraten wir Sie bei einem persönlichem Beratungsgespräch oder telefonisch zu ihrem Vorhaben.

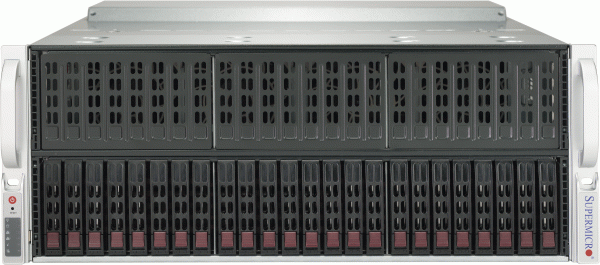

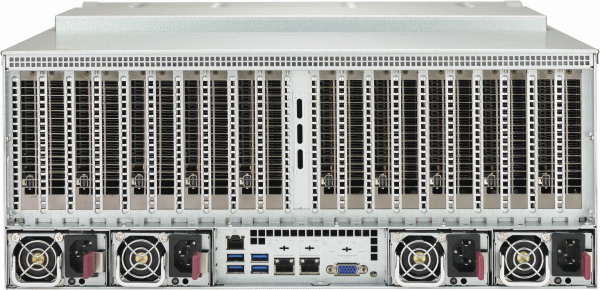

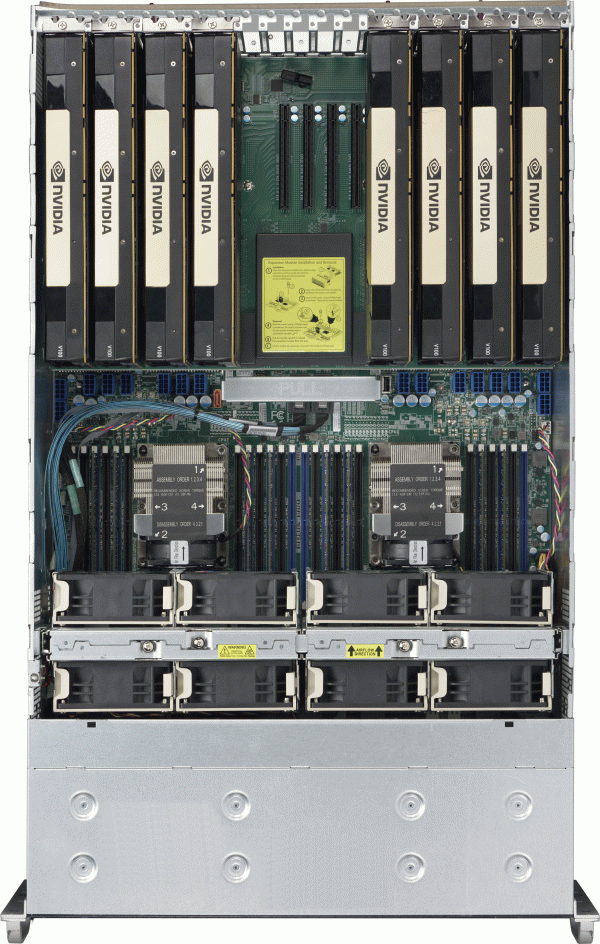

SYS-4029GP-TRT
- 3D Rendering
- Astrophysics Simulation
- Chemistry Simulation
- Virtualization
- Cloud Computing
- Research Laboratory/National Laboratory
Intel
4 HE
2 CPUs
24 DIMMs
24 Drives
8 GPUs
2 x 10 GbE
Red. PSU
SAS (native)
Key Features:
Dual Root System for balanced
performance & higher CPU
to GPU communication
Dual Socket P (LGA 3647) support
2nd Gen Intel® Xeon® Scalable
processors (Cascade Lake/Skylake)
24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz
8 PCI-E 3.0 x16 slots
(support up to 8 double width GPU),
2 PCI-E 3.0 x8, 1 PCI-E 3.0 x4
Up to 24 Hot-swap 2.5" drive bays;
8x 2.5" SATA drives supported
with included H/W, 2x 2.5" NVMe
drives supported with included H/W,
1 NVMe based M.2 SSD
2x 10GBase-T LAN ports via Intel C622
8 Hot-swap 92mm RPM cooling fans
2000W (2+2) Redundant Power
Supplies Titanium Level (96%+)
